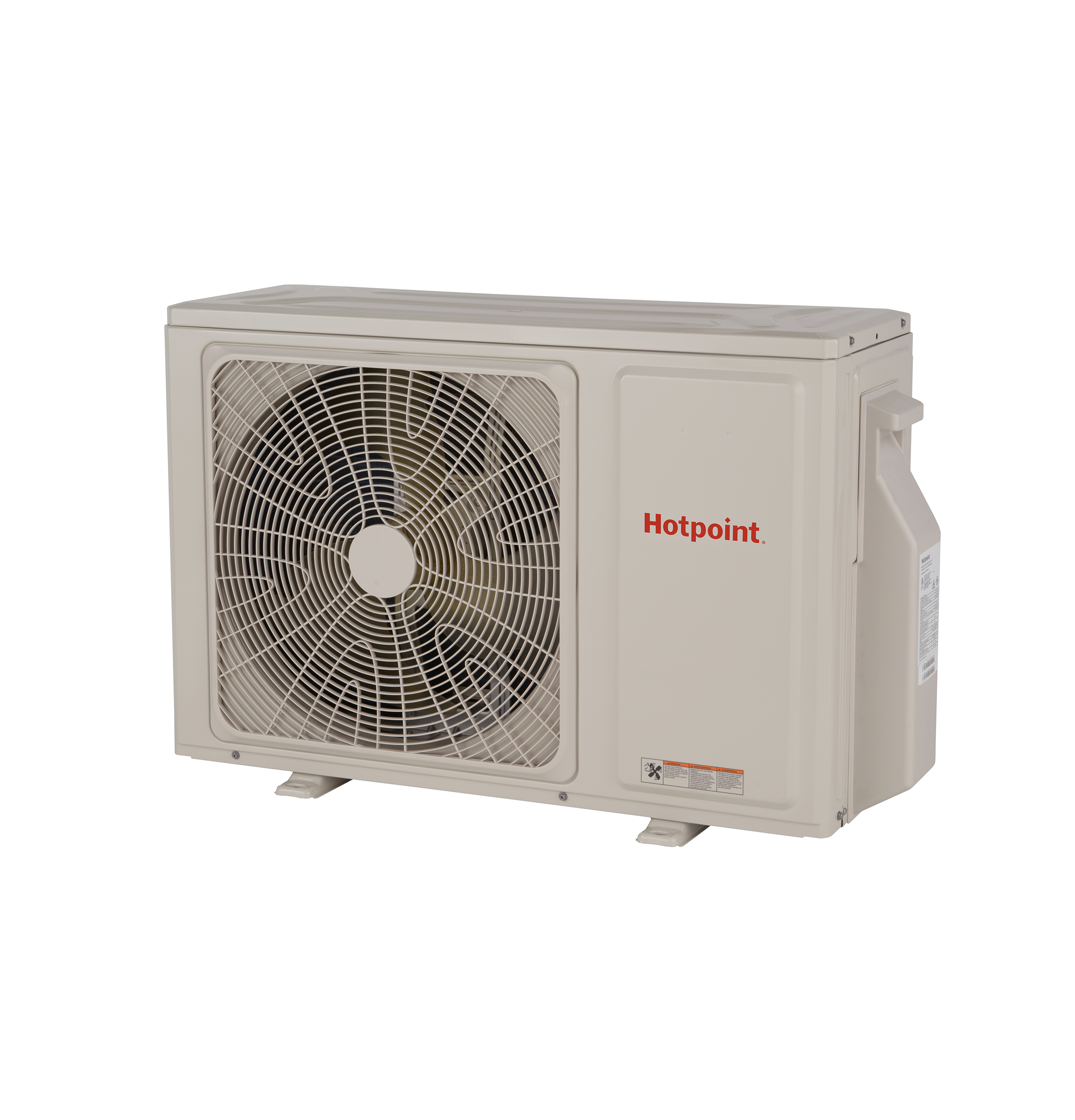

Hotpoint 208-230V 18,000 BTU Ductless Mini-Split Outdoor Heat Pump System

High Efficiency Ductless Heat Pump

• 18 SEER2 and 9.5 HSPF2 when paired with HW18HN2DAA.

High-Performance Inverter Technology

• A DC inverter compressor keeps indoor temperatures consistent in almost any climate and helps homeowners save money on energy.

All-Season Comfort

• With heating down to -15°F and cooling up to 115°F, homeowners know they’re coming home to comfort — no matter the weather outside.

Built to Last

• A hydrophilic aluminum fin helps prevent condensation buildup and ensures water flows through the unit smoothly.

Protective Base Pan Heater

• A built-in base pan heater on outdoor units prevents systems from freezing, keeping systems operating at peak performance.

Environmentally Compliant

• All Hotpoint® systems use R-32 refrigerant, ensuring that they meet EPA Low GWP (A2L) refrigerant regulations.

Federal & State Incentives

• Eligibility for federal and state incentives makes Hotpoint the easy choice for price-conscious consumers. All Hotpoint heat pumps are certified CEE Tier-2 except for 24K units installed in the South region. See CEE directory for qualifying models.

Worry-Free Warranty

• Unlock a 5-year limited parts and compressor warranty with registration; see warranty documentation for complete information.

• See specification guide for full heating, cooling, and system details.

FEATURES
Product Type	Single Zone
Outdoor Noise Level	59 dBA
System	18K Hotpoint
Factory Charge (ounces)	38.8 oz
Temperature Range - Cooling Mode	14-115 F (-10-46 C)
Unit Type	Outdoor
Temperature Range - Heating Mode	-15-75 F (-26-24 C)
Maximum Fuse Size A	20
Maximum Line Length (Ft/M)	83/25
Series	Hotpoint
Style	Outdoor
Connections	Flare
Rotary Compressor	DC Inverter Driven Rotary
Compatible Indoor Models	HW18HN2DAA
Maximum Height (Ft/m)	50/15

POWER / RATINGS
Voltage/Hertz/Phase	208-230/60/1
Minimum Circuit Amp	14
Cooling Rated Capacity BTU/Hr	18,000

WARRANTY
Parts Warranty	5-Year Limited Parts and Compressor Warranty with Registration, Limited 1-Year Parts and Compressor, See warranty documentation for complete information

WEIGHTS & DIMENSIONS
Overall Height	25.25 in
Approximate Shipping Weight	93.26 lb
Suction O.D. Refrigerant Line	1/2"
Liquid O.D. Refrigerant Line	1/4"
Overall Depth	12 in
Overall Width	32.25 in
Net Weight	80.69 lb

• Quick Specs

• Submittal Sheet

• Warranty

• Service Manual

• Specification Guide

• User Guide

• Installation Instructions

• Use and Care Manual
